Before post process in mapinfo, created *.tab file from logfile in TEMS :

1. Export logfile : Menu Bar Logfile -> Export Logfile

2. Click Add Order

3. Choose Format : MapInfo Tab-file

4. Setup IEs (Info Elements)

For GSM Dedicated or Idle :

- RxLev Full (dBm)

- RxLev Sub (dBm)

- RxQual Full

- RxQual Sub

- SQI

- TA

- Cell Id

- Frequncy Band

- Latitude

- Longitude

For WCDMA Dedicated / Idle / Scanner :

- AS Cell Name

- AS CPICH Ec/No

- AS CPICH RSCP

- SAN CPICH Ec/No

- SAN CPICH RSCP

- SAN Cell Id (CI Part)

- Sc 1st Aggr Ec (dBm) -> Scanner

- Sc 1st Aggr EcIo (dB) -> Scanner

- Sc Best SC -> Scanner

- Latitude

- Longitude

5. Configure Options Tab

6. Save *.mex

7. Choose Logfile : Click Browse file

8. If there are more than one logfile we can merge it by Merge Output

9. Choose Output directory : Click Browse dir

10. Give Prefix : Ded if Dedicated and Idle if Idle



11. Start process, click start

12. If done, status Success

13. There were created four files for each action (*.dat, *.id, *.map, *.tab)

14. Open the exported file into MapInfo : Menu Tab File -> Open





15. Create Thematic Map : Menu Tab Map -> Create Thematic Map

16. Choose Type -> Range

17. Template Name -> Region Ranges



18. Choose Table and Field (ie. Plotting RXQUAL_SUB from Dedicated mode)

19. Customize Ranges, Style and Legend.

20. Example Dedicated by RXQUAL_SUB



EVENTS on RXQUAL_SUB

21. Create Events on RXQUAL_SUB

22. Open again the exported file (Ded_orinaica)

23. Create Thematic Map : Menu Tab Map -> Create Thematic Map

24. Choose Type -> Individual

25. Template Name -> Region IndValue Default

26. Choose Table and Field

27. Customize Style and Legend



28. Example Events on RXQUAL_SUB

SPIDER GRAPH

29. Activate spider graph : Menu Tab Tools -> Tool Manager

30. Spider Graph Load and Autoload

31. See table structure of cell in MCOM Site : Menu Tab Table -> Maintenance -> Table Structure -> View/Modify Table choose MCOM Site



32. See table structure of CI in exported file : Manu Tab Table -> Maintenance -> Table Structure -> View/Modify Table choose exported file (ie. Ded_orinaica) -> Change type structure of CI

33. Click OK

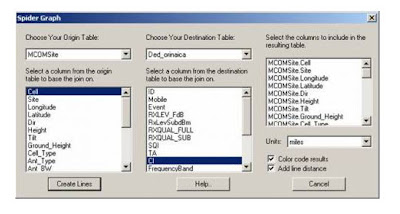

34. Create Spider Graph : Tools -> Spider Graph -> Spider Graph

35. Choose Original and Destination table

36. Save the Spider Graph table : Save Copy As -> (ie. orinaica)

37. From Spider Graph, We can analyze :

- Dominant Cells

- Overshoot Cells

- Swap Feeder
